Modular & Leisure Build

Modular & Leisure Build

Off-site Manufacturing for schools, student accommodation, Hospitals and the Leisure Industry is becoming ever more popular in modern day construction. The Magply Euroclass A1 board can be used in Off-Site Manufacturing as a fire mitigation sheathing board for Timber Frame, Steel Frame & Sip Panels. Magply provides a fire-safe, lightweight environmentally friendly solution for OSM and as a high performance, multi-functional board, Magply features a Magnesium Oxide formulation which is manufactured from a production process that ensures a very low chloride content enhancing both stability and durability. Crucially, Magply carries internationally recognised accreditations confirming the boards’ ability to deliver fire integrity and excellent racking strength, impact or pull-out resistance and all round ease of use in a variety of off-site.

Technical Drawings

For project specifications please contact the Technical Team 01621 776252

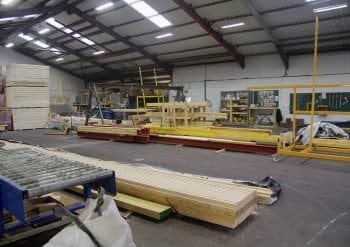

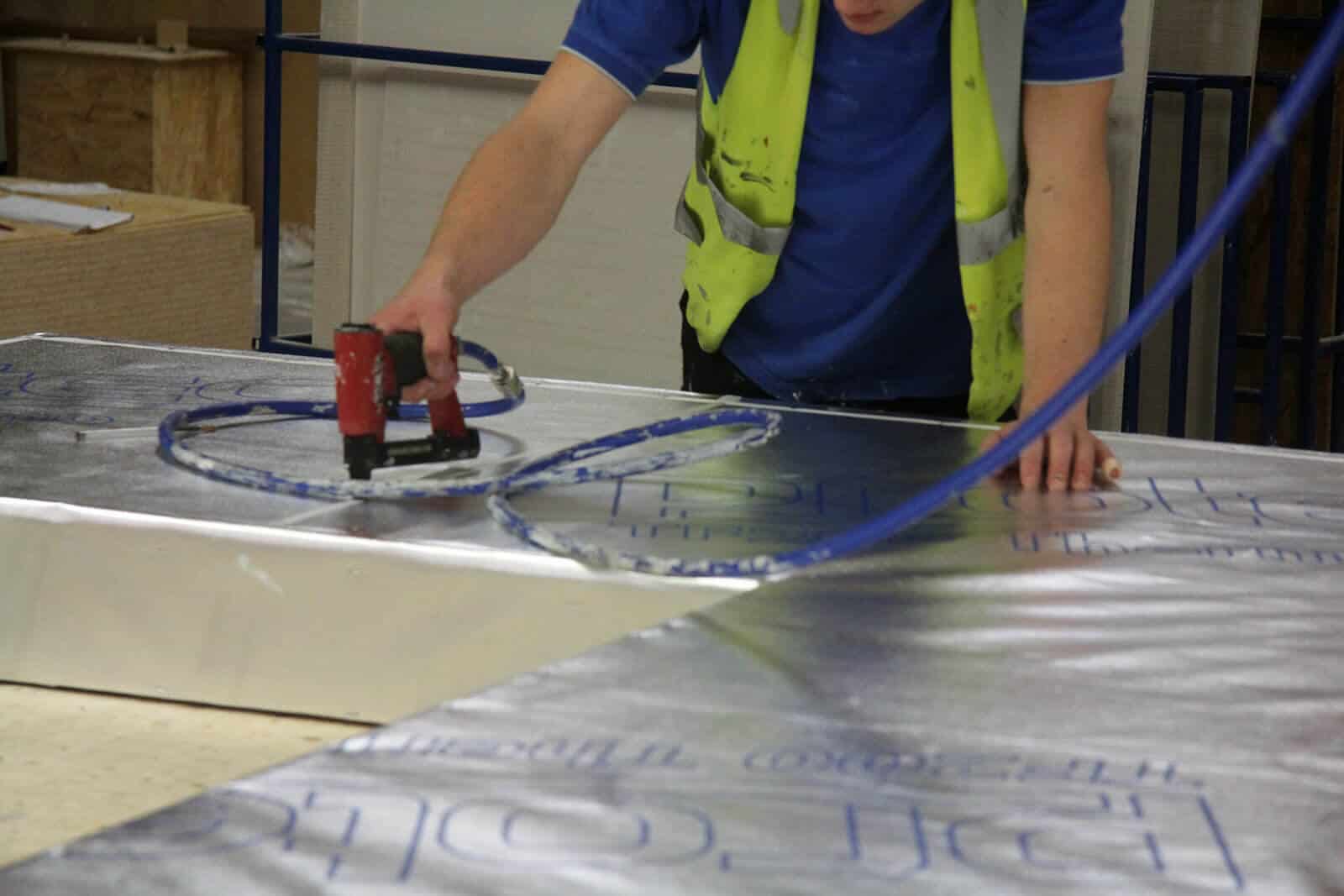

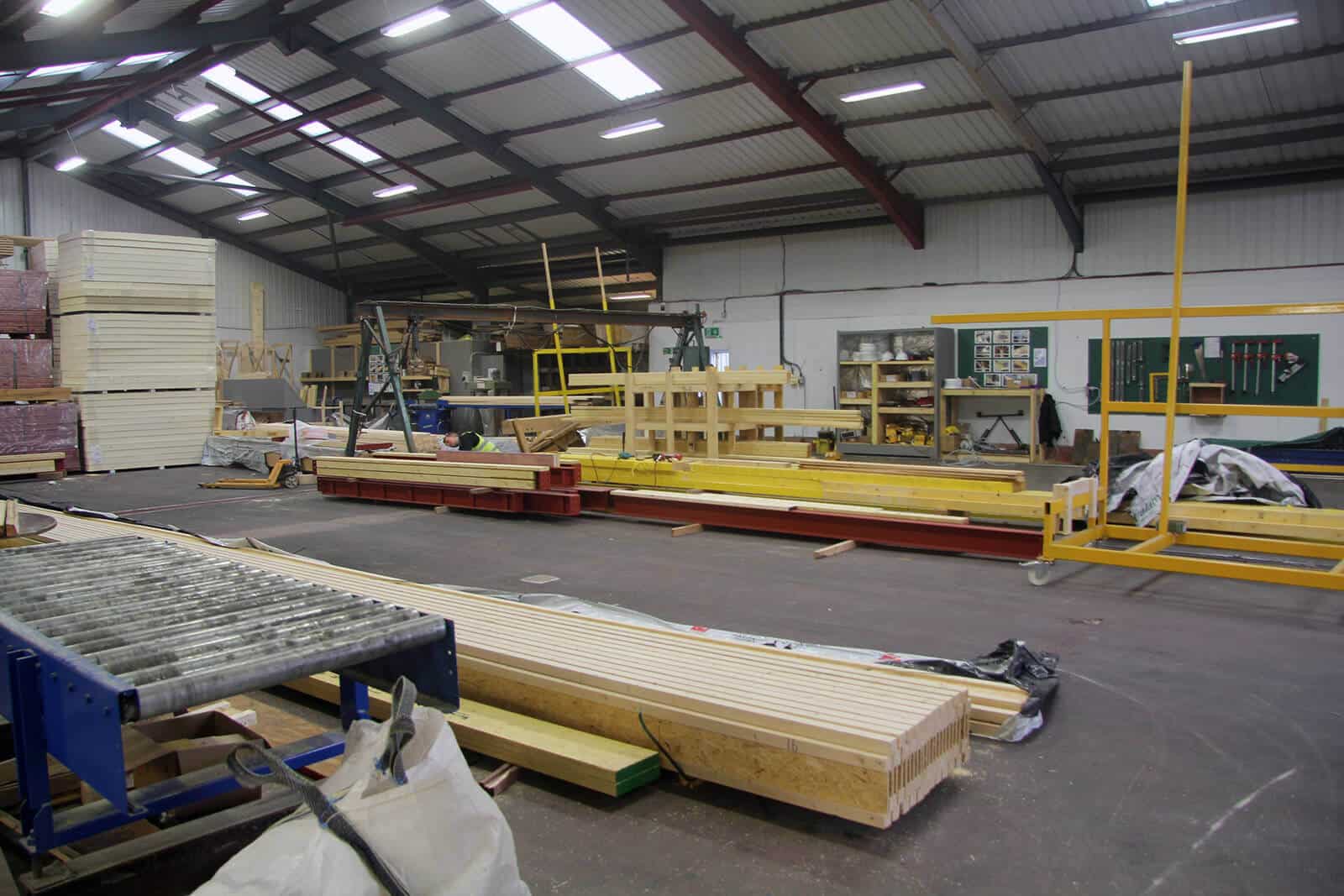

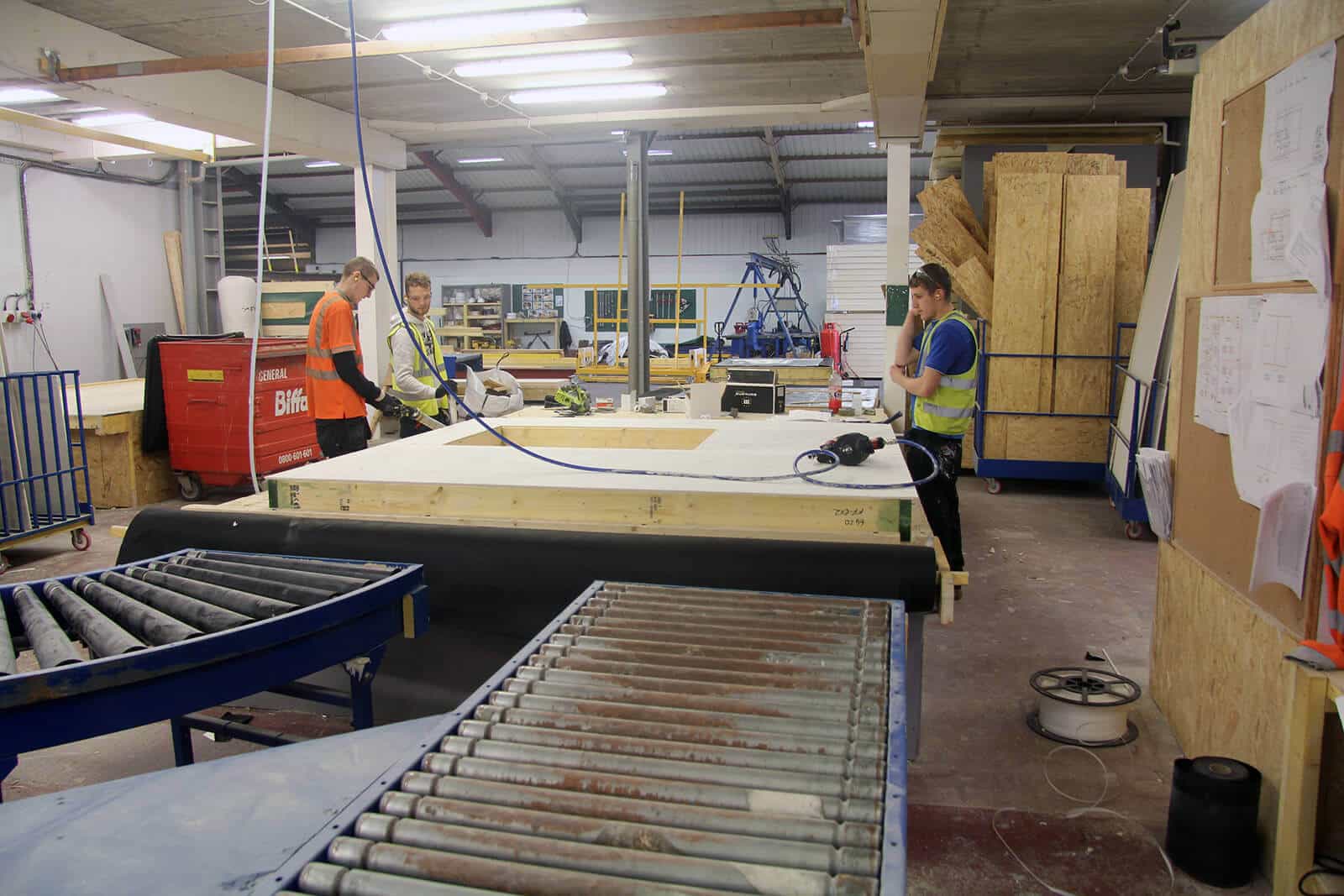

Gallery

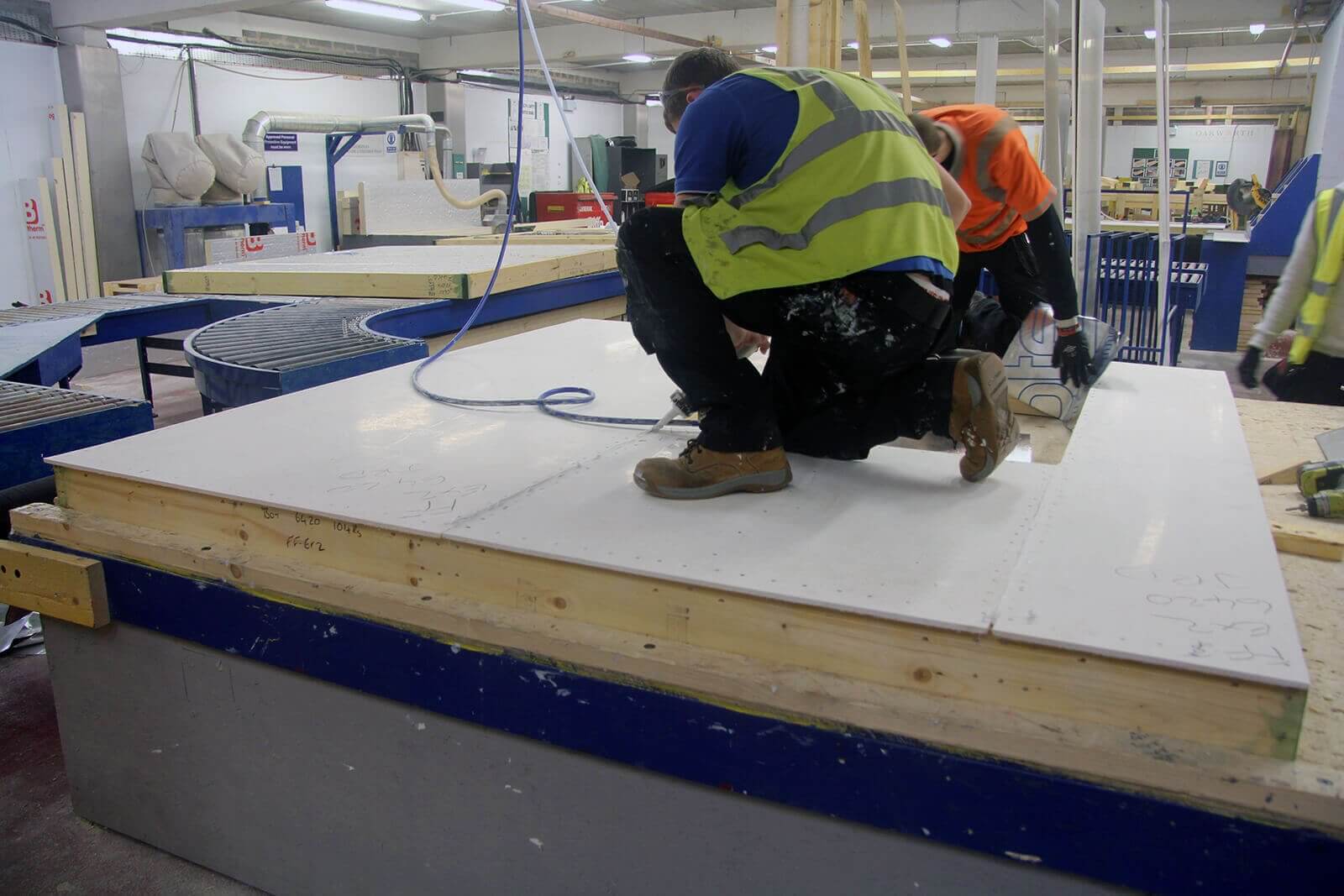

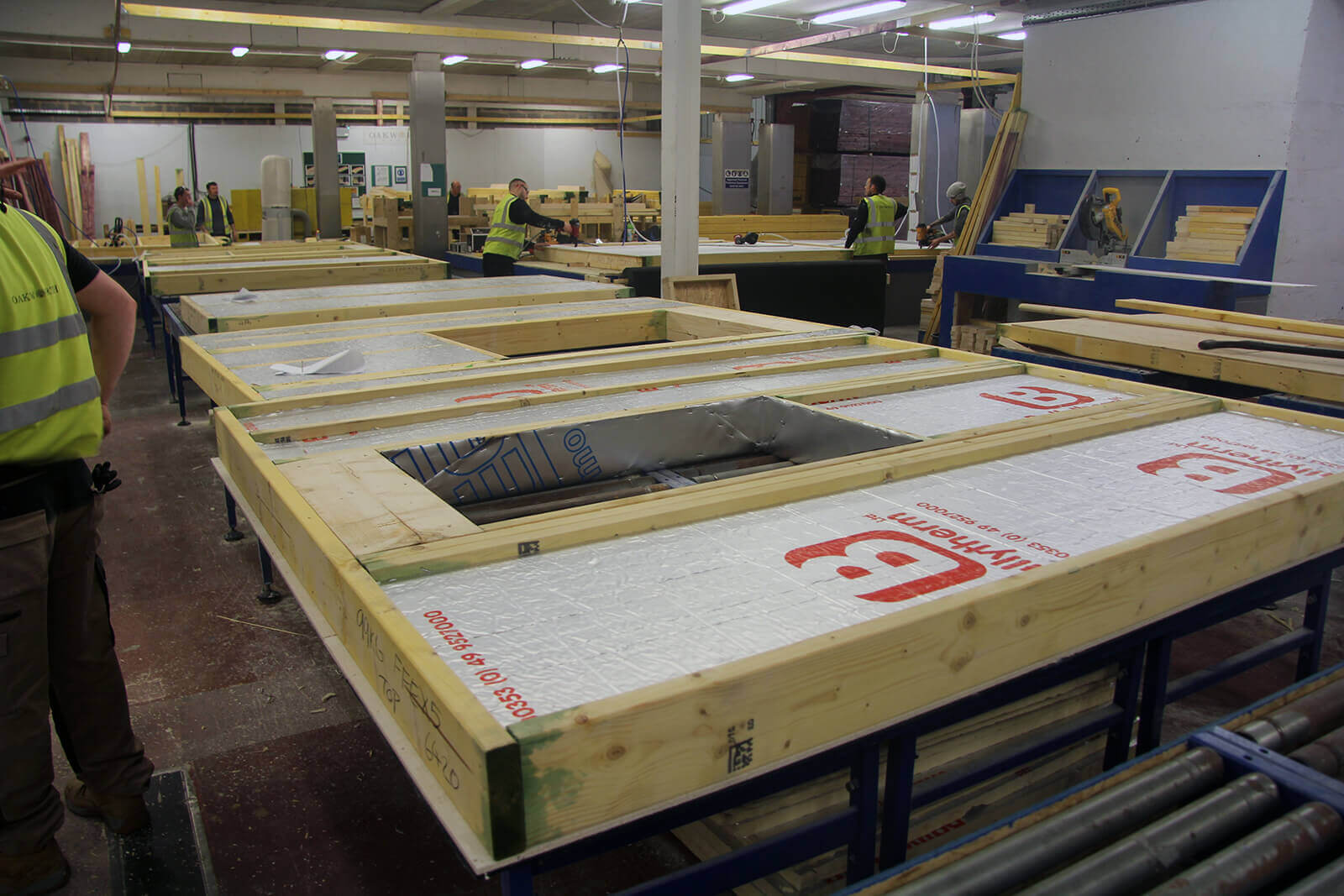

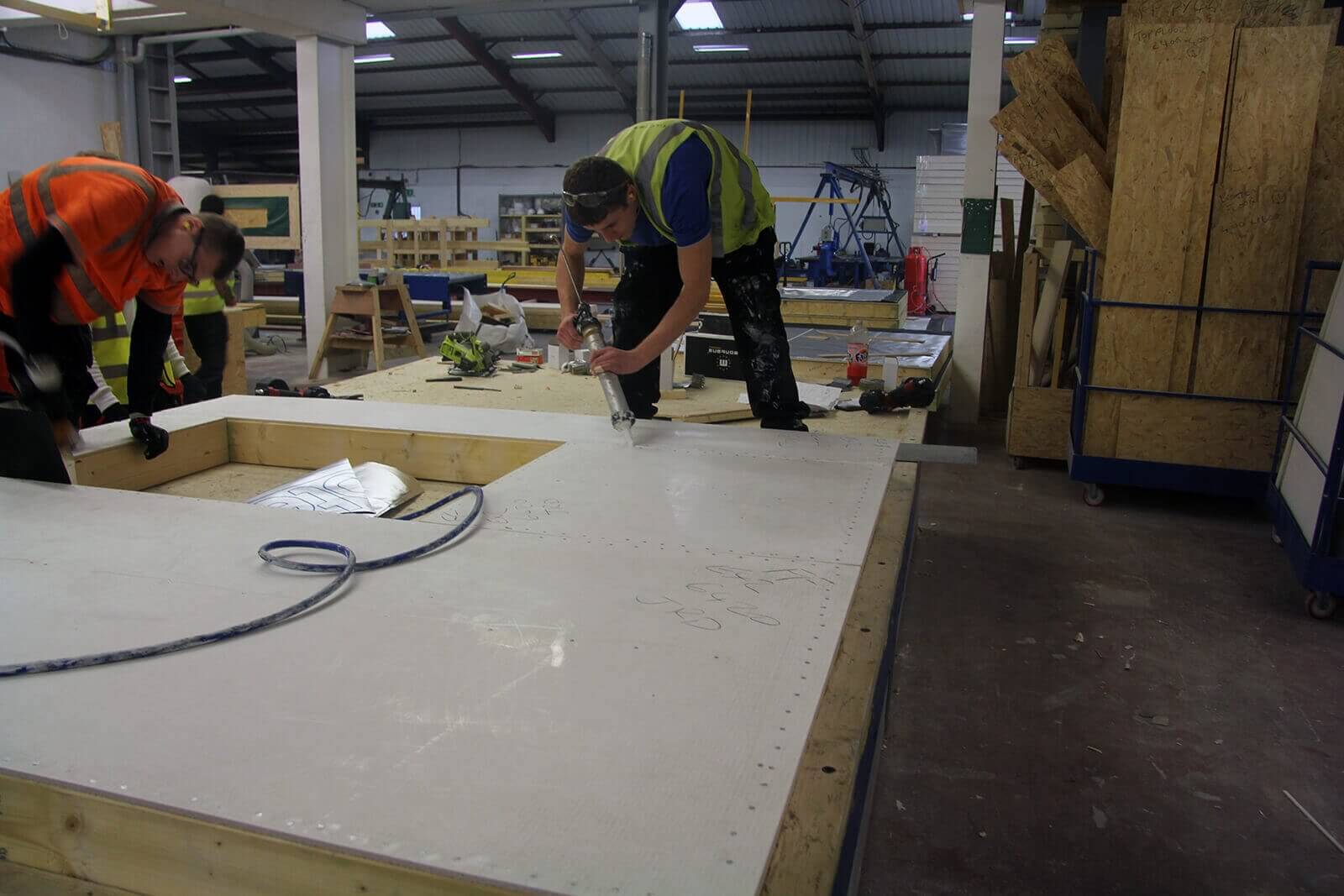

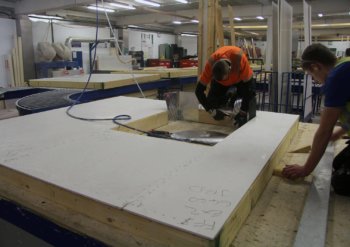

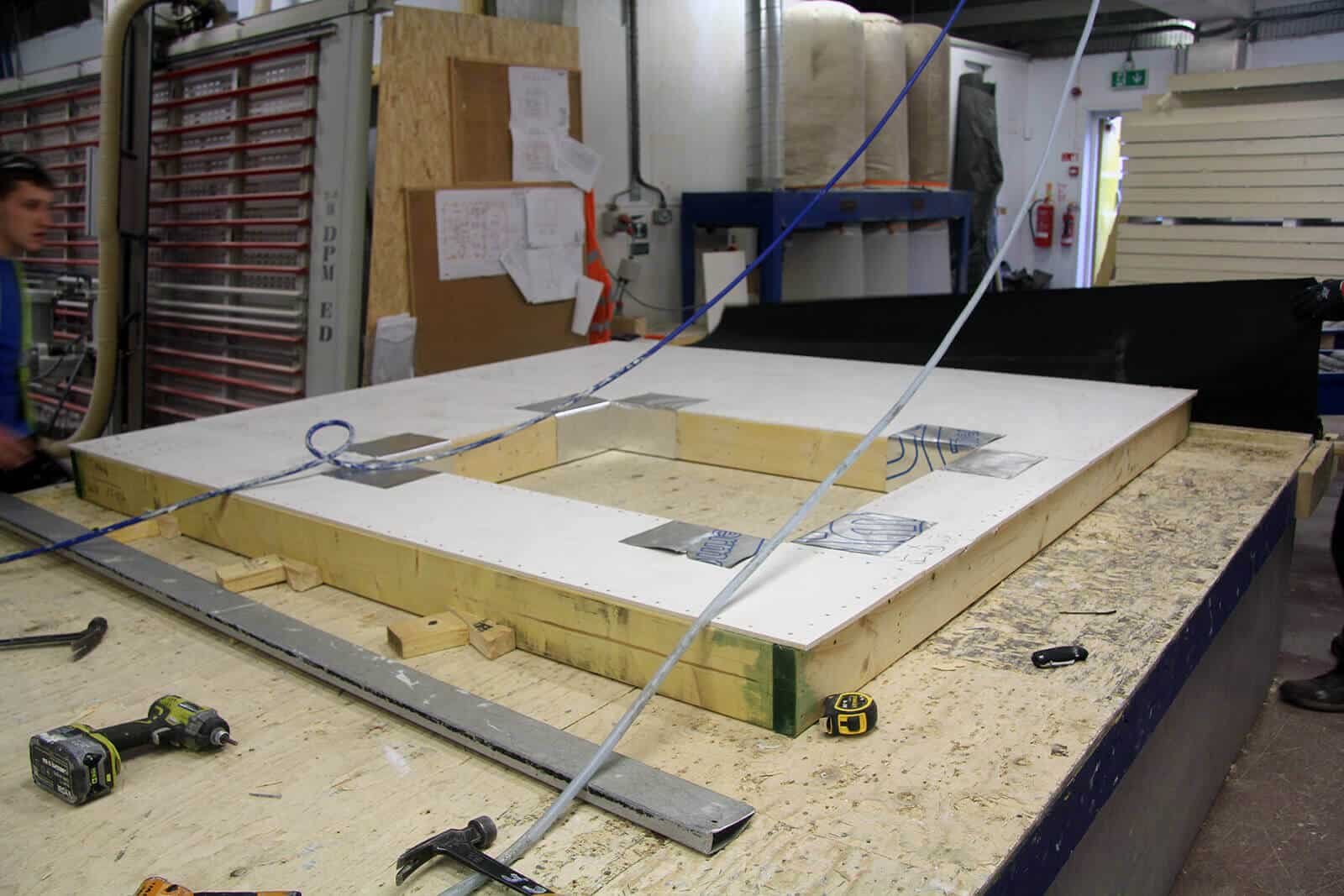

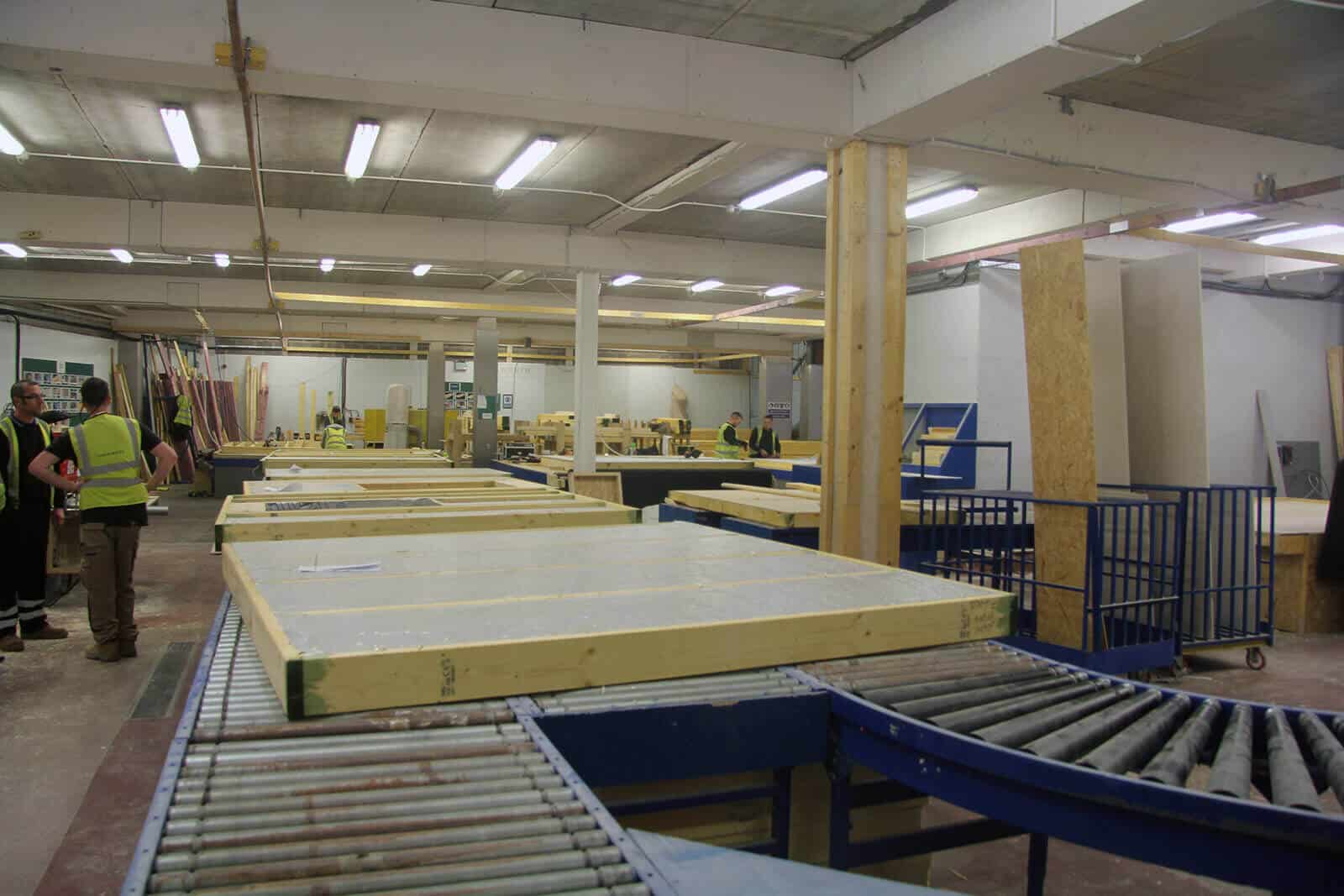

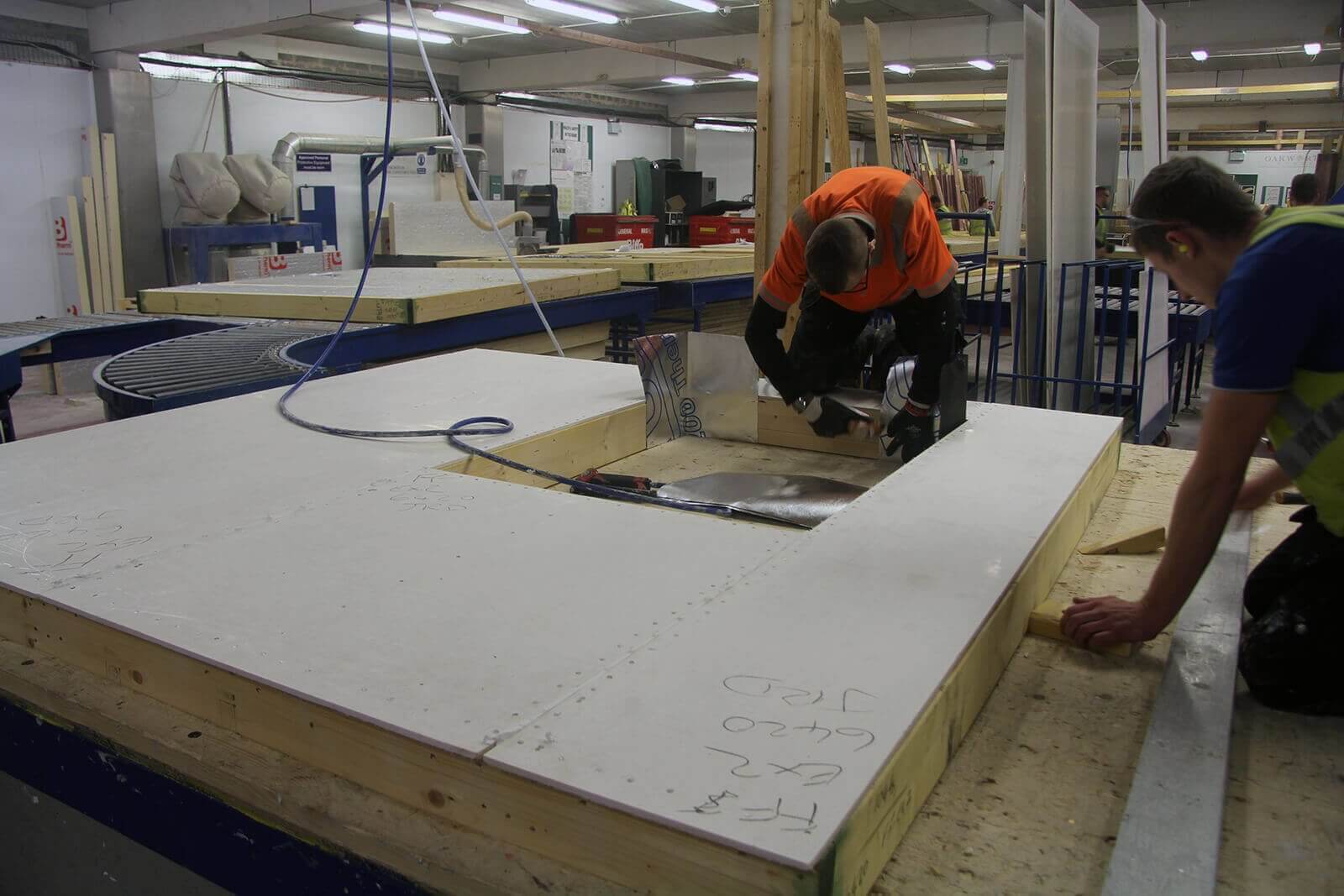

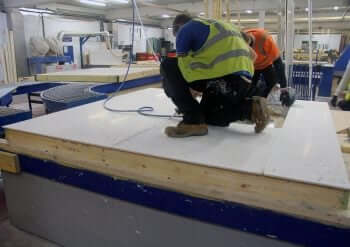

Magply testing for off-site construction frame

BS EN 1365-1:2012 (Loaded Wall)

Magply has been tested to determine the fire resistance in a Loaded Wall Assembly in accordance with BS EN 1365-1 :2012.

Test Results: BS EN 1365-1:2012
Integrity: 67 minutes
Insulation: 67 minutes

BS EN 1364-1:2015 (PIR Timber Frame)

Magply has been tested to determine the fire resistance in a non-Loadbearing, partition wall assembly in accordance with BS EN 1364-1 :2015.

Test Results: BS EN 1364-1:2015 (PIR TIMBER FRAME)
Integrity: 75 minutes
Insulation: 66 minutes

BS 594 (Racking ReSistance)

Magply has been tested to BS 594 to provide the following Racking Strength

Nailing Centres Load per Stud Racking Resistance to BS 594
150mm/300mm 0kN 1.74 kN/m
150mm/300mm 5kN 1.70 kN/m
50mm/150mm 0kN 5.90 kN/m

Magply is suitable for outside weather exposure for a minimum of 3 months

Fixing and cutting

Magply not only cuts better, but the boards are not prone to cracking or splitting if they are installed with pressurised nail guns. Magply can be easily cut to size on site using the score and snap method. Using a pencil, mark the required size and score along the pencil line suing a utility knife and straight edge ensuring you cut through the reinforcing mesh.

For more information on fixing please download our fixing guide.

The benefits of using Magply

Environmentally Friendly

Environmentally Friendly

Mould Resistant

Mould Resistant

Breathable

Breathable

Exceptional Performance

Euroclass A1 Performance

Strong and Easy to use

Strong and Easy to use

Moisture Protection

Moisture Protection
