Rainscreen Cladding

Rainscreen Cladding

As a high performance, multi-functional board Magply features a Magnesium formulation to offer a fire-rated environmentally friendly board for rainscreen cladding.

Additionally the unique production process of Magply keeps the Chloride content to just 0.01% enhancing both stability and long term durability. Magply provides
A1 performance in rainscreen cladding applications and has been tested in accordance to EN 13501 Class A1 Non-Combustible inline with the Building Control
Alliance Technical note 18 ‘use of Combustible Cladding Materials on residential buildings paragraph 12.7 of AD B2 – use materials of limited combustibility throughout the cladding system.

Boards are manufactured 1200mm x 2400mm in 6,9,12 and 18mm, bespoke sizes are available on request.

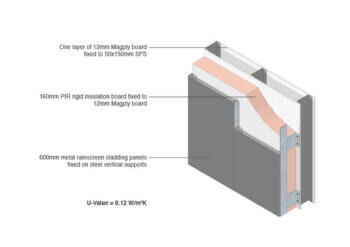

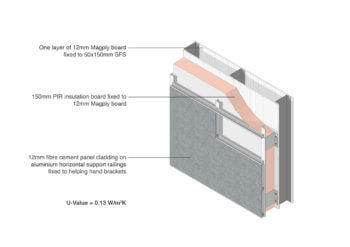

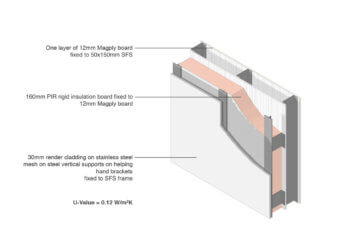

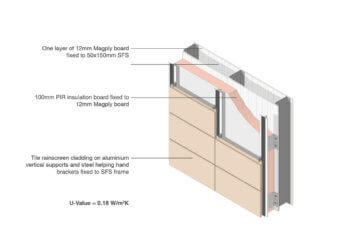

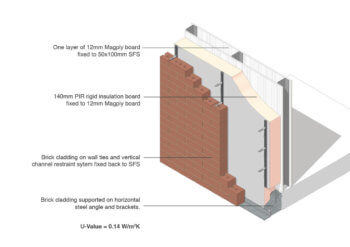

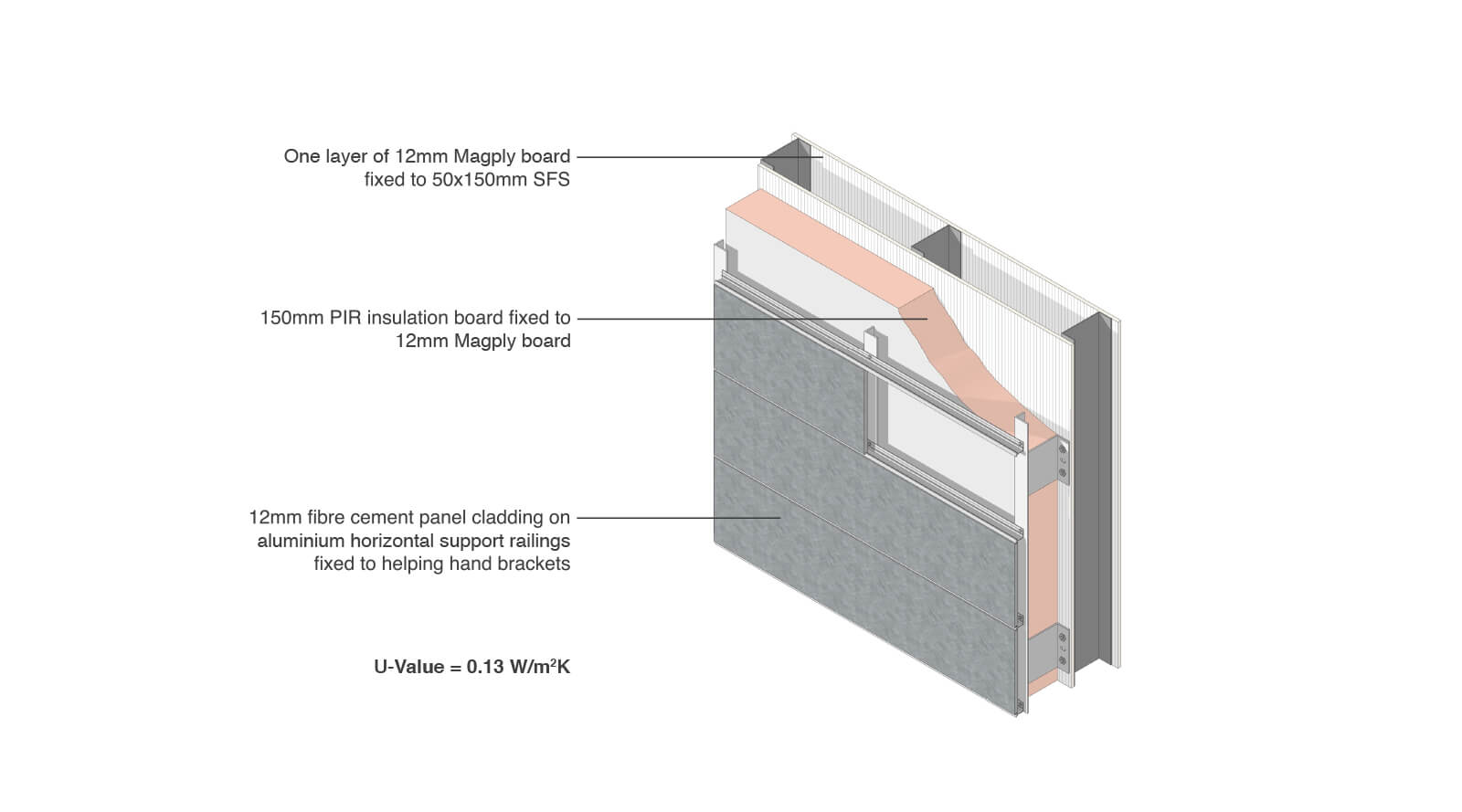

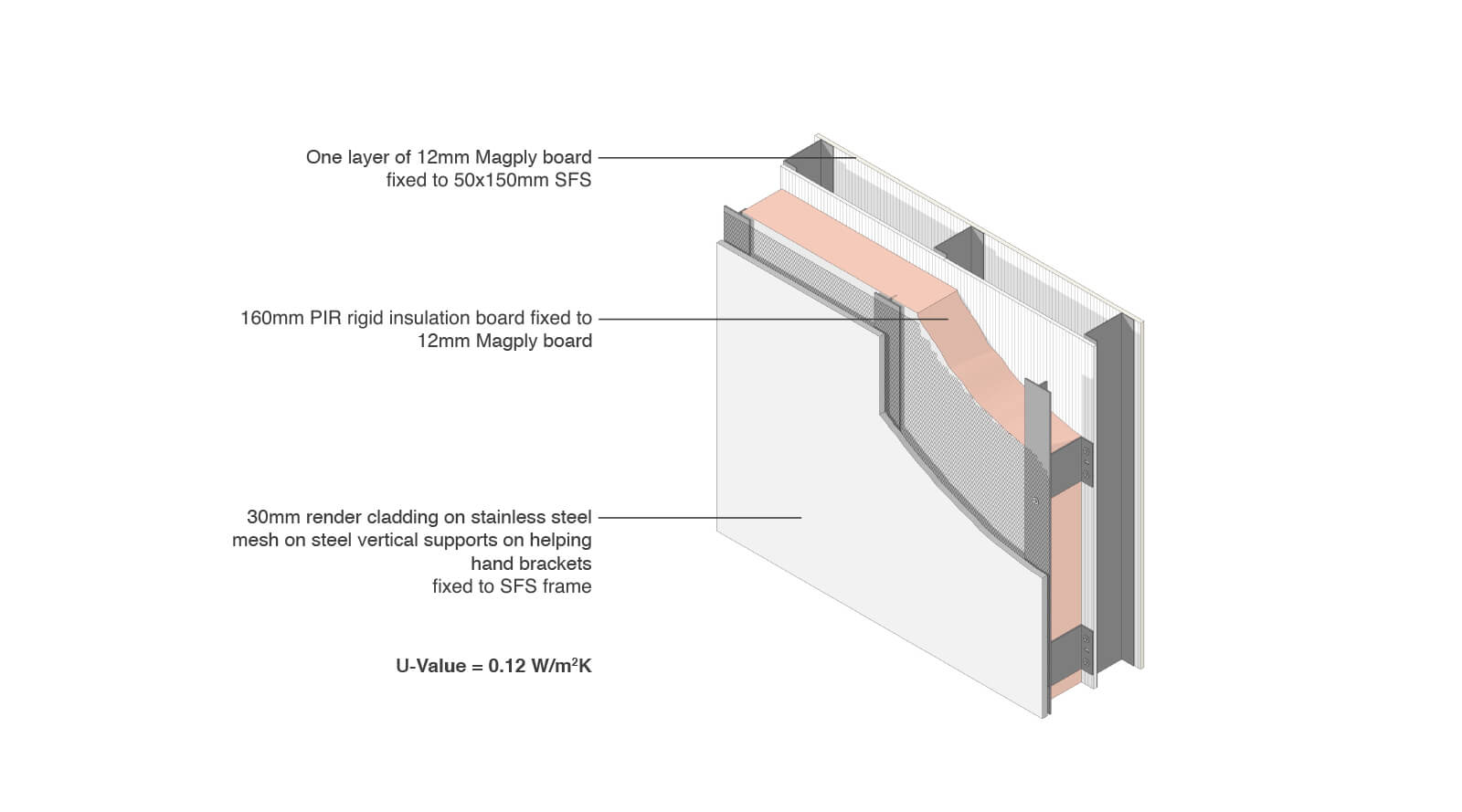

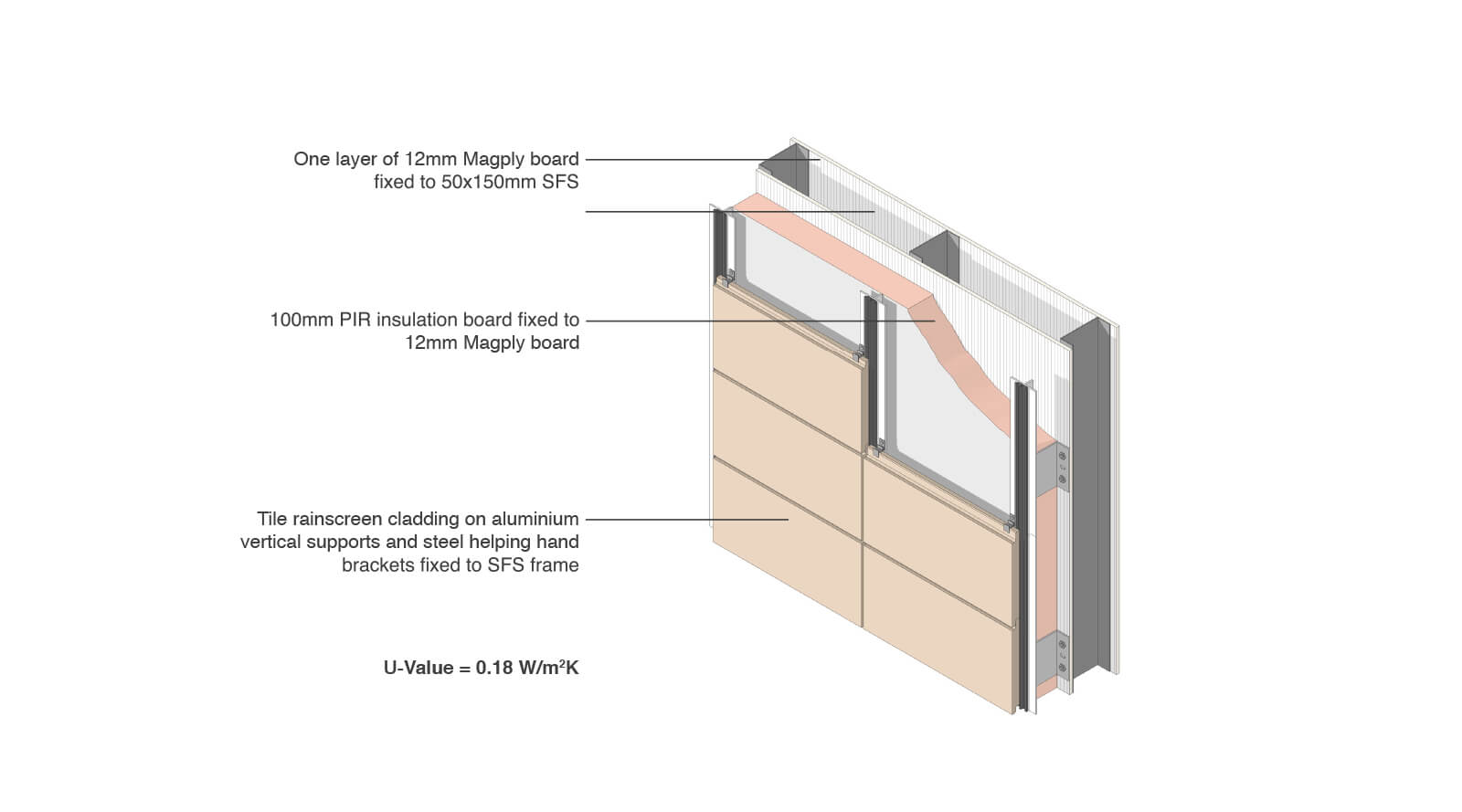

Technical Drawings

For project specifications please contact the Technical Team 01621 776252

Fixing and cutting

Magply the safe option for Oakworth homes customersMagply not only cuts better, but the boards are not prone to cracking or splitting if they are installed with pressurised nail guns. Magply can be easily cut to size on site using the score and snap method. Using a pencil, mark the required size and score along the pencil line suing a utility knife and straight edge ensuring you cut through the reinforcing mesh.

For more information on fixing please download our fixing guide.

The benefits of using Magply

Environmentally Friendly

Environmentally Friendly

Mould Resistant

Mould Resistant

Breathable

Breathable

Exceptional Performance

Euroclass A1 Performance

Strong and Easy to use

Strong and Easy to use

Moisture Protection

Moisture Protection
